3E Compass (Mils & Degrees)

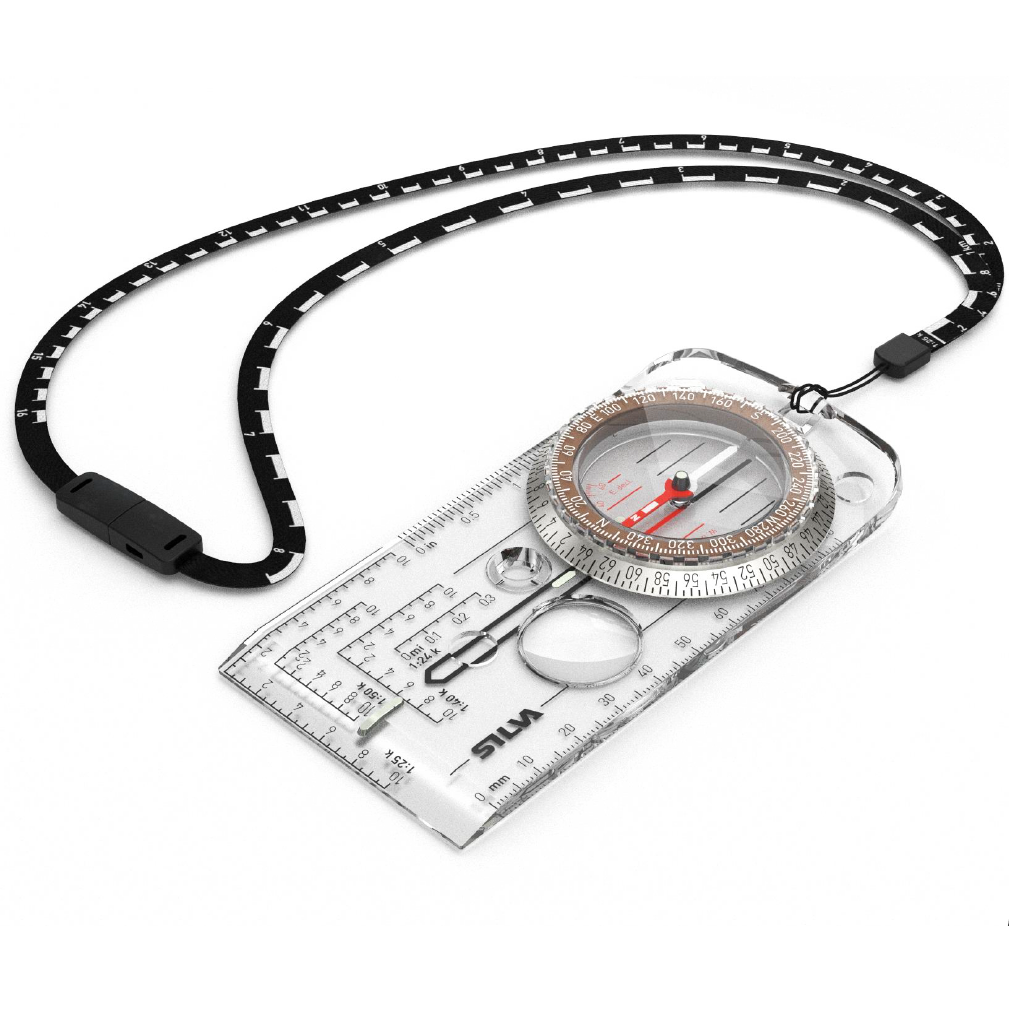

Silva 3E baseplate compass MS – southern hemisphere, 5 year warranty*

The new SILVA 3E baseplate compass features both Mils and degrees on the dial making it suitable for both standard navigation and military purposes.

• DOUBLE GRADUATION - Both 360 and 6400 MILS on top side
• LONG “EXPEDITION” BASE PLATE - Long base plate increases accuracy during navigation
• ROMER SCALES - 4 Romer scales for accurate positioning on the map

The Silva 3E compass features a liquid-filled capsule with a sapphire jewel bearing and a high-quality steel needle for precise navigation. Equipped with a magnifier lens and luminous markings for enhanced visibility and usability in low light situations.

It offers graduation in degrees and mils (6400/360), Romer scales for positioning and lanyard for comprehensive navigational support.

Features:

• Graduated in mils and degrees (6400/360)
• Silva 1-2-3 System baseplate compass
• Liquid filled capsule
• High quality steel needle
• Sapphire jewel bearing
• Hardened steel pivot
• Magnifying lens
• Declination adjustment, declination scale in capsule
• Romer scales: 1:24k, 1:25k, 1:40k, 1:50k
• 4 hours illumination / active time after activation in light
• Silicon friction feet
• Patented red/black N/S lines in capsule

Specifications:

• Dimensions:  12.5 x 6 x 1 cm
• Weight: 38 grams
• Main material: Acryllic/Aluminium
• Silva product code 38512
• UPC: 7318860208195
